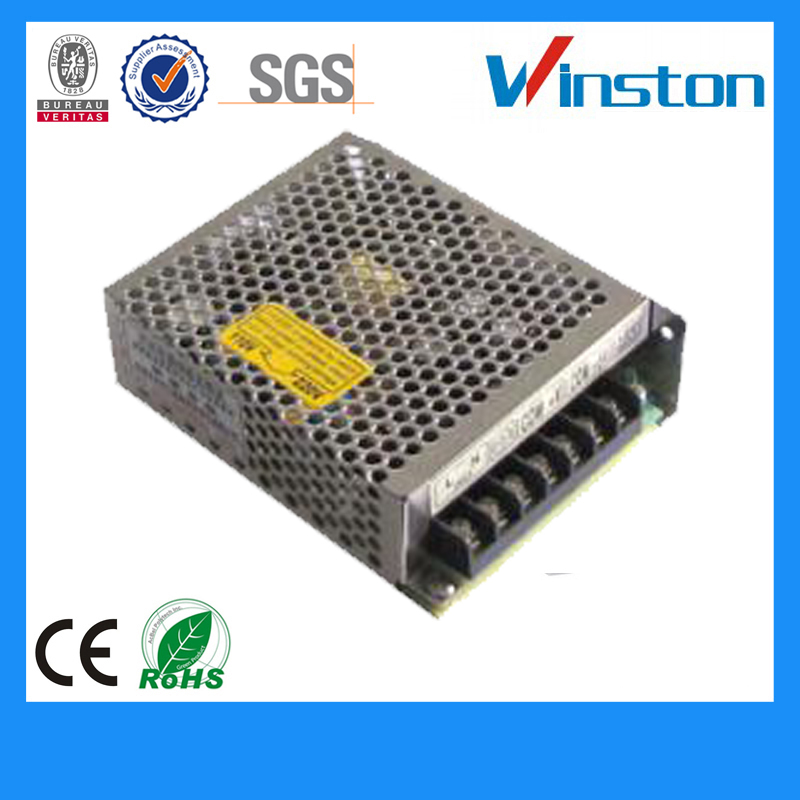

| Model | T-30A | T-30B |
| Specification | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC output voltage | 5V | 12V | -5V | 5V | 24V | -12V |
| Output voltage error(Note,2) | ±2% | +2,-6% | +2,-10% | ±2% | +2,-10% | ±6% |
| Rated output current | 3A | 1A | 0.5A | 3A | 1A | 0.5A |
| Output current rage | 0.5-3A | 0.1-1A | 0.1-0.5A | 0.5-3A | 0.1-1A | 0.1-0.5A |
| Wave and noise(Note ,3) | 50mVp-p | 100mVp-p | 50mVp-p | 50mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note ,4) | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% |
| Load stablity (Note ,5) | ±0.5% | ±5% | ±5% | ±0.5% | ±5% | ±5% |
| DC output power | 30W | 33W |
| Efficiency | 70% | 72% |
| Adjustable range for DC voltage | CH1,+10,-5% | CH1,+10,-5% |
| AC input voltage range | 85-132VAC/170-264VAC selected by switch 47-63Hz,240-370VDC |
| Input current | 0.8A/115V 0.45A/230A |
| AC INnrush current | Cold-start current35A |
| Leakage current | <0.5mA/240VAC |
| Overload proctection | 105%-150%Type,Foldback:current limiting reset,auto recovery |
| Over-voltage protection | ………… |
| High-temperature protection | ………… |
| Temperature coefficient | ±0.03%/°C(0-50°C) |
| Setup rise hold up time | 200ms,100ms,30ms |
| Vibration | 10-500Hz,2G 10min,/1cycle,Period for60min,Each axes |
| Withstand voltage | Input and output internal,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC |
| Isolation resistance | Input and output internal,Input and enclosure,Output and enclosure,500VDC/100MΩ |
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH |
| Store temperature and humidity | -20°C~+85°C.10%~95%RH |

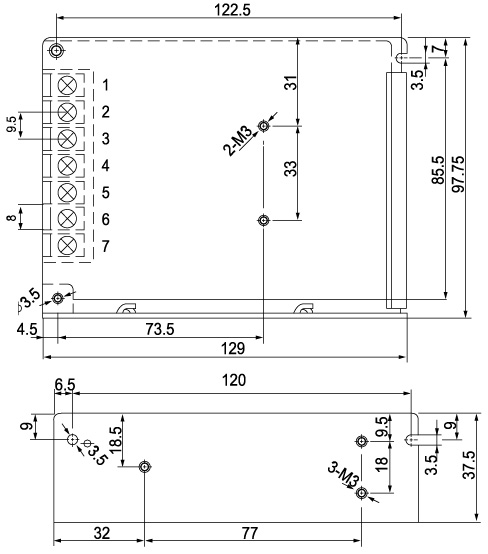

| Overall dimension | 129×98×38mm |
| Weight | 0.4Kgs |
| Safety standards | Meet UL 1012R requirement (Not apply for the mark) |
| EMC standards | Meet FCC Part15 J Conduction class A |
| Note |
| 1. The testing condition for the paramenter above is ,230VAC input,rated load,25°C70% RH.Humidity. |
| 2. Error.include the setting error,line stability and load stability.(Note:5). |
| 3. Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. |
| 4. Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. |
| 5. Load stability test:the load is from 0% to 100%. |
