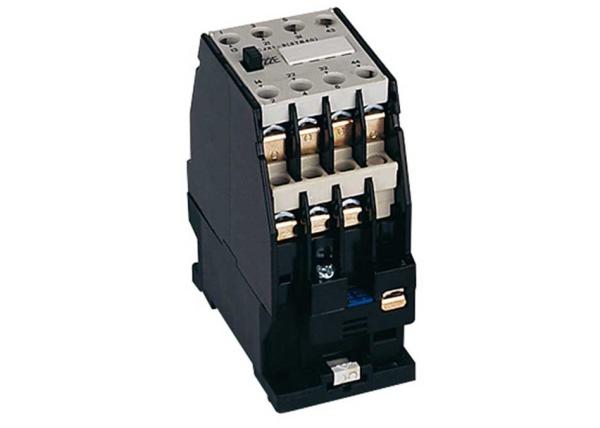

IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact

Product Categories
YUEQING WINSTON ELECTRIC CO.,LTD.
Contact Now

IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact

Brand Name : Winston/OEM

Model Number : CJX1(3TF)

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Material : ABS

Frequency : 50/60HZ

Current : 9A to 475A

OEM : YES

Standard : IEC60947-4-1

Max voltage : 1000V

Contact : Silver Alloy

Contact Now

IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact

CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.

TECHNICAL PARAMETER

Type CJX1-9
CJX1-12		 CJX1-16
CJX1-22		 CJX1-32 CJX1-45
CJX1-63		 CJX1-75
CJX1-85		 CJX1-110
CJX1-140		 CJX1-170
CJX1-205		 CJX1-250
CJX1-300		 CJX1-400
CJX1-475

Mechanicalendurance

(×106)

 10 10 10 8 8 8 8 8 8

Conventionalthermal

current(A)

 20 30 45 80 100 160 210 300 400/550

Rated insulationvoltag

e(V)

 660 660 660 1000 1000 1000 1000 1000 1000

Rated(380V)

operatingcurrent(A)

 AC-3 9/12 16/22 32 45/63 75/85 110/140 170/205 250/300 400/475
AC-4 3.3/4.3 7.7/8.5 15.6 24/28 34/42 54/68 75/96 110/125 150

Power ofcontrollablemotor(KW)

AC-3

 380V 4/5.5 7.5/11 15 22/30 37/45 55/75 90/110 132/160 200/250
660V 5.5/7.5 11 23 39/55 67 100 156 235 375

Power ofcontrollablemotor(KW)

AC-4

 380V 1.4/1.9 3.5/4 7.5 12/14 17/21 27/35 38/50 58/66 81
660V 2.4/3.3 6/6.6 13 20.8/24 29.5/36 46.9/60 66/86 100/114 140

Frequencyof operation

(l/h)

 AC3 1000 750 750 1200/1000 1000/850 1000/750 700/500 700/500 500/420
AC4 250 250 250 400/300 300/250 300/200 200/130 200/130 150

Electricalendurance

(×106)

 AC3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
AC4 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Operating voltagerange of coil (0.8~1.1)Ue

Powerconsump-tion

of coil

Atracting

(VA)

 10 10 12.1 17 32 39 58 84 115

Starting

(VA)

 68 69 101 183 330 550 910 1430 2450

Rated insulationvoltage

of auxitiarycontacts(V)

 690 690 690 690 690 690 690 690 690

Conventionalthermal

current ofauxitiary contacts(A)

 10 10 10 10 10 10 10 10 10

Ratedoperatingcurrent

ofauxitiarycontacts(A)

AC15380

/220

 6/10 6/10 4/6 4/6 4/6 4/6 4/6 4/6 4/6

DC

13220V

 0.45 0.45 0.48 0.48 0.48 0.48 0.48 0.48 0.48
Ratedvoltage ofthe controlcoil(V) 50Hz 24,36,48,110,127,220,380,etc
60Hz 24,110,220,440,etc.

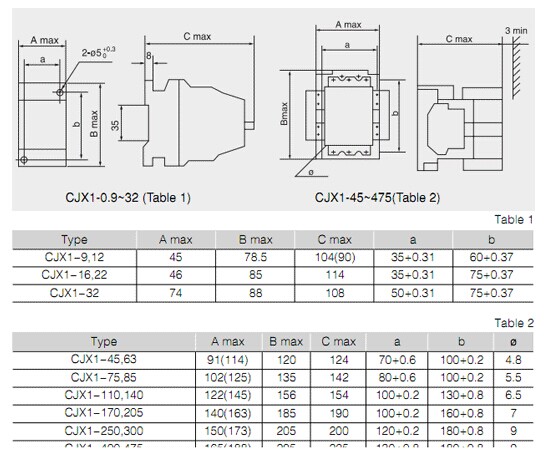

WIRING DIAGRAM

IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
